Product Description
Product Overview :

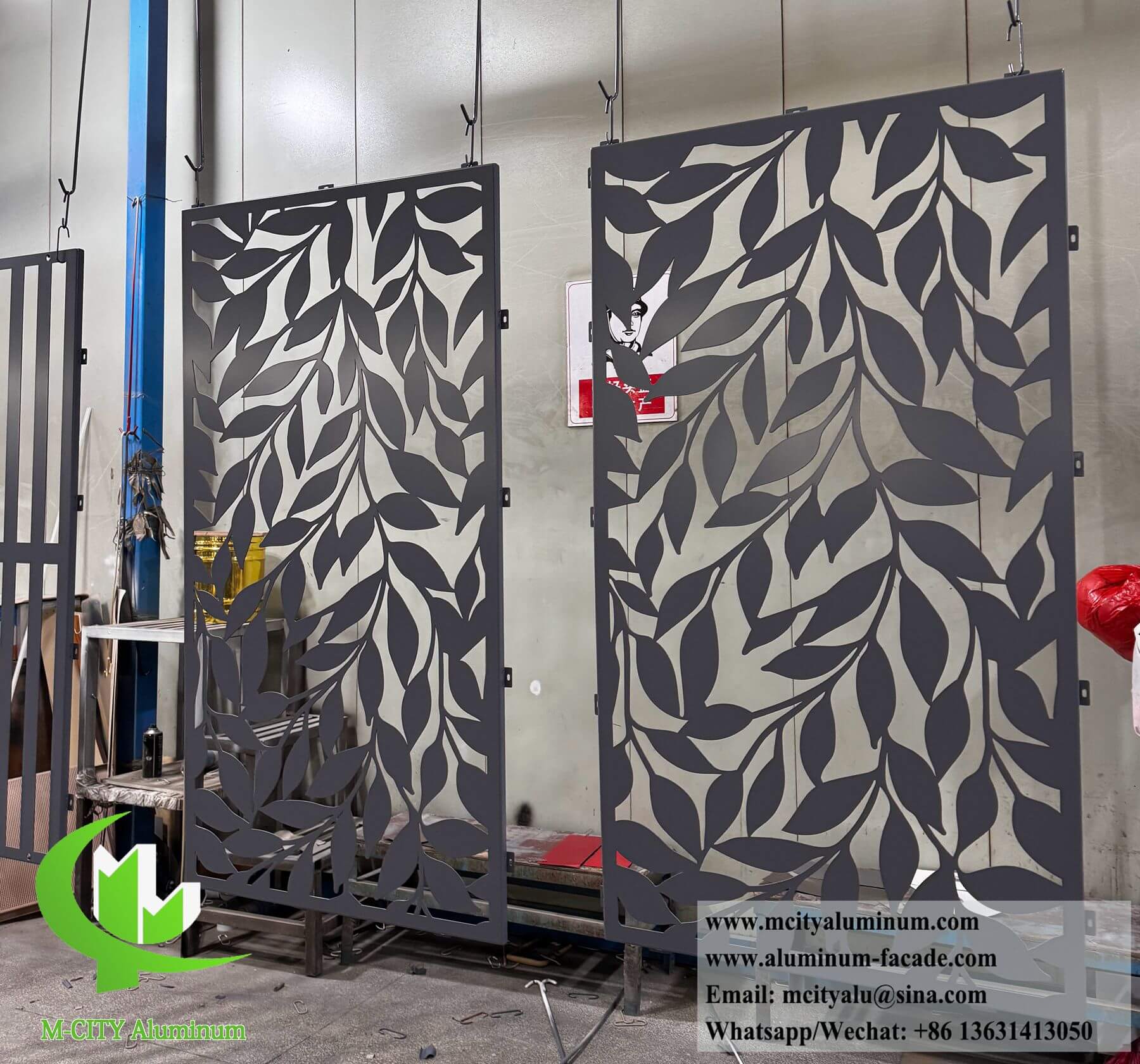

Enhance your building's aesthetic and functional performance with our 3.0mm Laser-Cut Aluminum Panels. Specifically engineered for high-end architectural facade cladding, these panels offer the perfect blend of artistic design and structural integrity. At M-City Aluminum Factory, with 20 years of manufacturing expertise, we provide precision-engineered solutions that meet the rigorous demands of modern architecture.
Key Features :
High-Precision Laser Cutting: Our state-of-the-art CNC technology allows for intricate geometric, organic, or custom patterns, transforming a standard aluminum sheet into a functional piece of art.
Optimal 3.0mm Thickness: The 3mm gauge ensures superior flatness, wind resistance, and durability for outdoor applications, preventing the "oil canning" effect common in thinner materials.
Ventilation & Natural Light: The perforated laser-cut design promotes excellent airflow (natural ventilation) and light diffusion, making it ideal for car parks, balconies, and energy-efficient building skins.

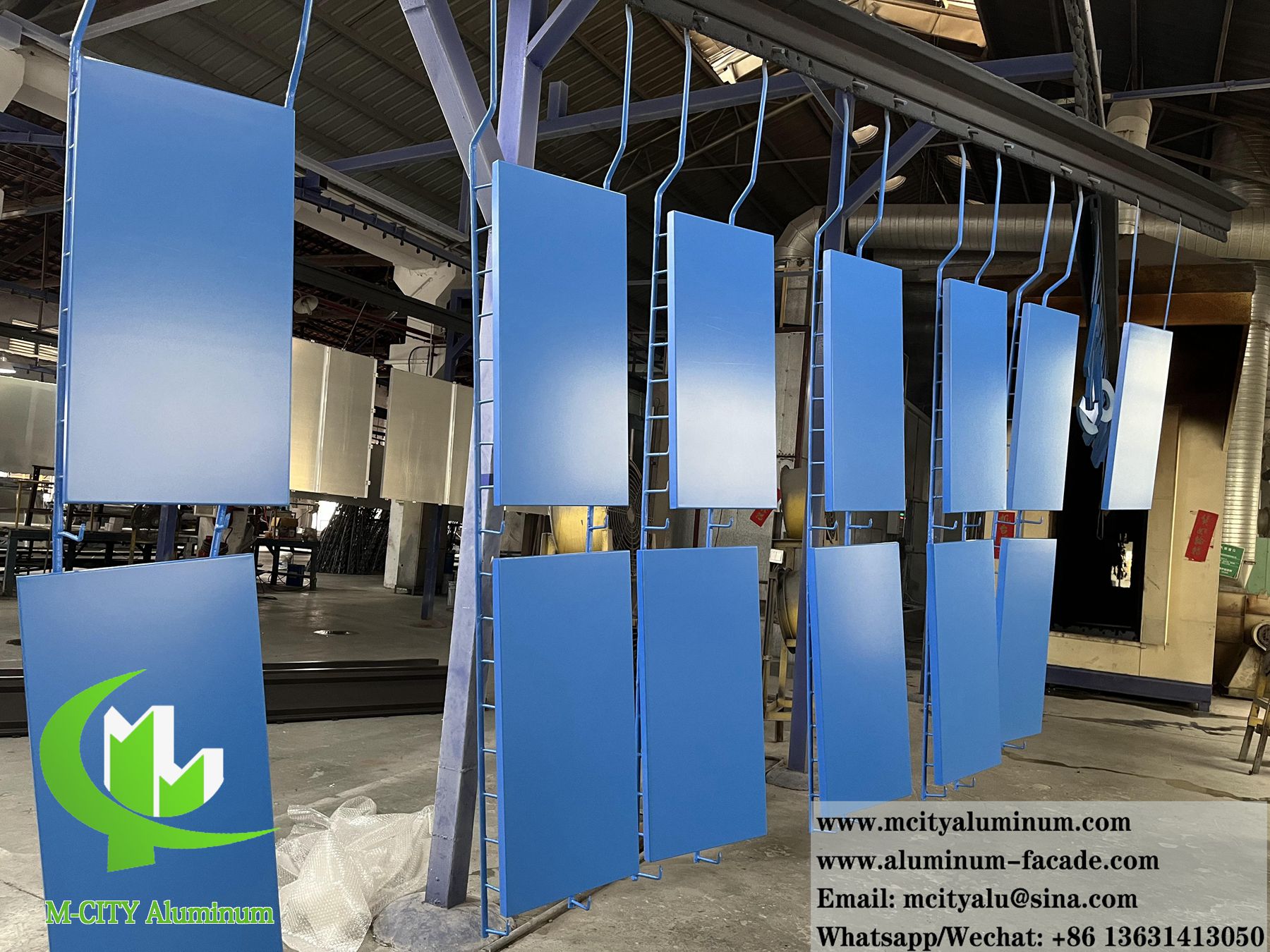

Premium Surface Treatment: Available in high-performance Powder Coating (AkzoNobel/PPG) or PVDF finishes, providing exceptional resistance to UV rays, corrosion, and harsh weather conditions.
Specifications :
Feature | Specification |
Material | High-grade Aluminum Alloy (3003-H14 / 5005-H14) |
Thickness | 3.0mm (Customizable from 1.5mm to 6.0mm) |
Surface Finish | PVDF, Powder Coated, or Anodized |
Pattern | Custom Laser-Cut / Perforated Designs |
Application | Facade Cladding, Sunshades, Balcony Screens, Interior Partition |
Durability | 15-20+ Years Outdoor Performance |
Why Choose M-City Aluminum?
With two decades of industry experience, M-City Aluminum understands the technical requirements of large-scale commercial and residential projects. We offer full customization from CAD drawing support to final surface finishing, ensuring your facade is delivered on time and to the highest quality standards.
Call to Action :
Ready to elevate your next project? Contact us today for a technical consultation or a quick quote.
📧 Email: [email protected]
🏭 M-City Aluminum Factory – 20 Years of Excellence in Aluminum Fabrication.
Aluminum screen projects
Materials: | Aluminum alloy AA3003 and AA1100 series |
Standard size: | 1000mmx2000mm, 1200x2400mm |
Other size: | Max. Width: 1500mm Max. Lenght: 5000mm |
Thickness: | 1mm， 1.5mm, 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm |
Surface treatment: | Powder coated, PVDF paint |
Color: | Any RAL colors, wooden grain color, stone color, etc. |
Coating: | Akzo Nobel, PPG, Tiger etc. |
Application: | Cladding, Facade, fence, wall canopy, ceiling, screen, window, balcony, privacy panel, space dividers etc. |
Patterns | Any patterns can be customized, just supply us the drawing or picture |
1. what thickness is ok?
Aluminum is one kind of metal, aluminum thickness is 1-12mm, in generally, for facade, we suggest 3mm or 2.5mm, but depends on the panel size.
2. what's the difference between powder coated, polyester paint and pvdf paint?
These are three types surface treatment, powder coated is the cheapest one, polyester is in the middle, and the pvdf is the most expensive one. For the quality,the powder coated is under 10 years. Polyester is 10 years, pvdf is 15 years quality guaranteed.
Powder coated and polyester is suitable for interior, pvdf is suitable for exterior.
3. what is the coating mean?
Coating is a surface treatment. They are powder coating, polyester, PVDF.
Powder coating is the cheapest way, PVDF is more expensive. PVDF coating can prevent the rain and wind, stay bright after years.
4. Any pattern is ok?
Most is ok, except some patterns have not supported point. You can choose our patterns, or provide your own design,
5. what is the price?
Because the aluminum facade panel can be customized, so, we didn't have the exact price for you. After customers provide the information of thickness, color, pattern, cover size, coating way, then we can quote the exact price.
